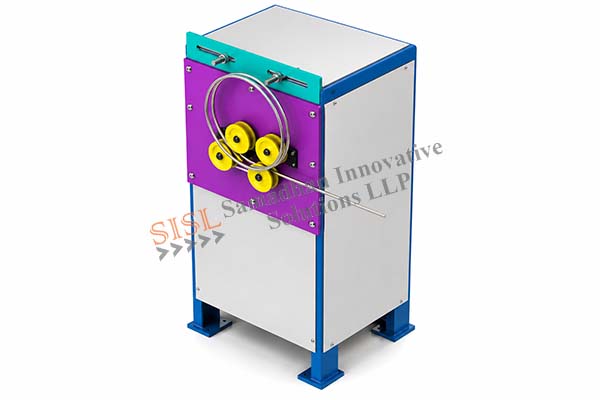

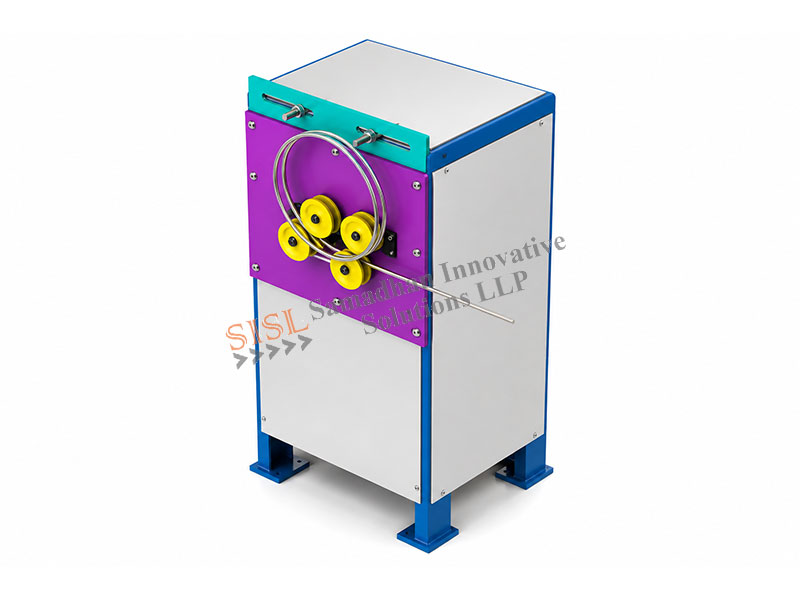

Pipe Coiling Machine
- The machine is used to make coils of tubes it has a capacity from 5 mm rod to 25 mm tube with 2 mm thickness
- The machine is used to make coils of 12 mm tube of variable diameters from 150 mm to 2000 mm
- Auto job detection to start and stop operation of machine
| SR NO | MODEL NO | MAX. FORMING RANGE | MOTOR HP | FORMING SPEED | FEEDING METHOD | MACHINE SIZE | MACHINE WEIGHT |
|---|---|---|---|---|---|---|---|
| 1 | SITTM 1 | Ø12.7 × 50MM | 5 | 10-15 MM/SEC | MANUAL | 430 × 330 × 1100MM | 350 KG |
| 2 | SITTM 2 | Ø25.4 × 100MM | 7.5 | 10-15 MM/SEC | MANUAL | 900 × 800 × 1400MM | 1600 KG |
| 3 | SITTM 3 | Ø50.8 × 200MM | 10 | 10-15 MM/SEC | MANUAL | 900 × 800 × 1400MM | 1700 KG |
