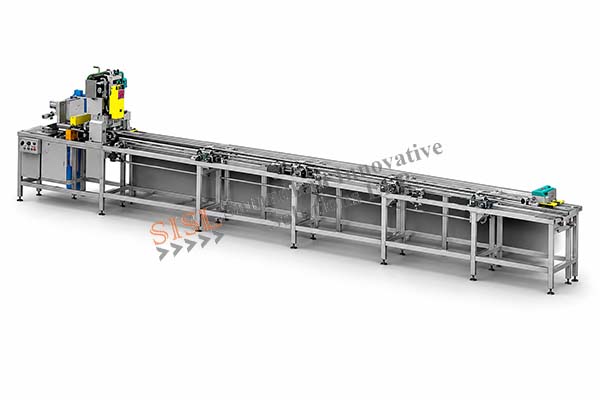

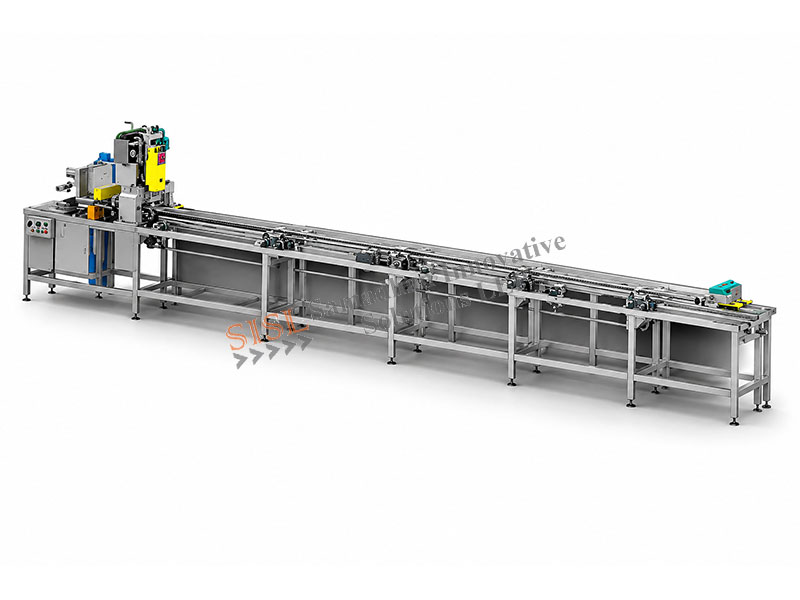

Round Tube Laser Cutting Machine with Autoloader
- Dimension: 9.6 x 2.5 x 3.5 mtr.
- Cycle time for cutting 600 mm long pipe with end notches is 10 sec
- We have incorporated special id holding main chuck so that we can utilize the pipe up to the last end ensuring that only 150 mm of scrap remains
- We have utilized a 3 jaw self centering chuck as the mid chuck with pre set jaws to ensure exact concentricity of pipes held
- This machine is equipped with an automatic loading system for bulk pipe storage. The machine loads the pipe automatically and produces precise, burr-free cuts to meet desired shapes or sizes
